Remote Online Counter (ROC)
The HIAC Remote Online Counter (ROC) is constructed for harsh environments delivering dependable operation and reliable results in high-pressure, high-temperature applications.
Easy to operate with carefree maintenance, the HIAC ROC is an ideal choice for a wide variety of industrial and mobile applications including multi-point system monitoring, hydraulic power units and fluid fill stations.
- Instant results for quick & informed decision making
- Wide sampling range (2 to 424 cSt)
- Local display with ISO codes for each count channel, alarms & status information
Quick Detection
- Real-time particle contamination & condition information for quicker decision-making in oil analysis applications
- Local display with ISO codes for each LPC channel, alarm & status detail
Operation
- Large flow path minimizes blockages during operation
- Few moving parts for trouble-free maintenance
- Compatible with hydraulic & lubrication oils, mineral, synthetic (phosphate ester option)
- Long-life laser diode for continuous on-line, maintenance-free operation
Software
- Easy configuration for specific applications
- Log & export data for customized reporting
- Real-time trend data for proactive maintenance
- Serial port connection with utility program
Applications
- Multipoint system monitoring
- Hydraulic presses and machines
- Filter carts
- Fluid fill stations
- Hydraulic power units
- Reclamation station
- Component test stands
- Flushing Stands

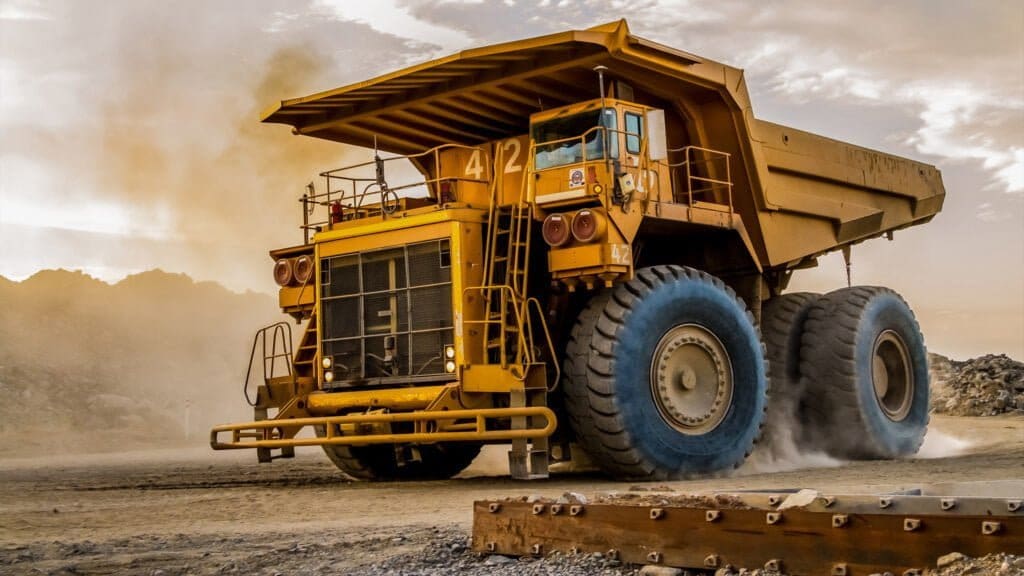

- Earth Moving Machinery

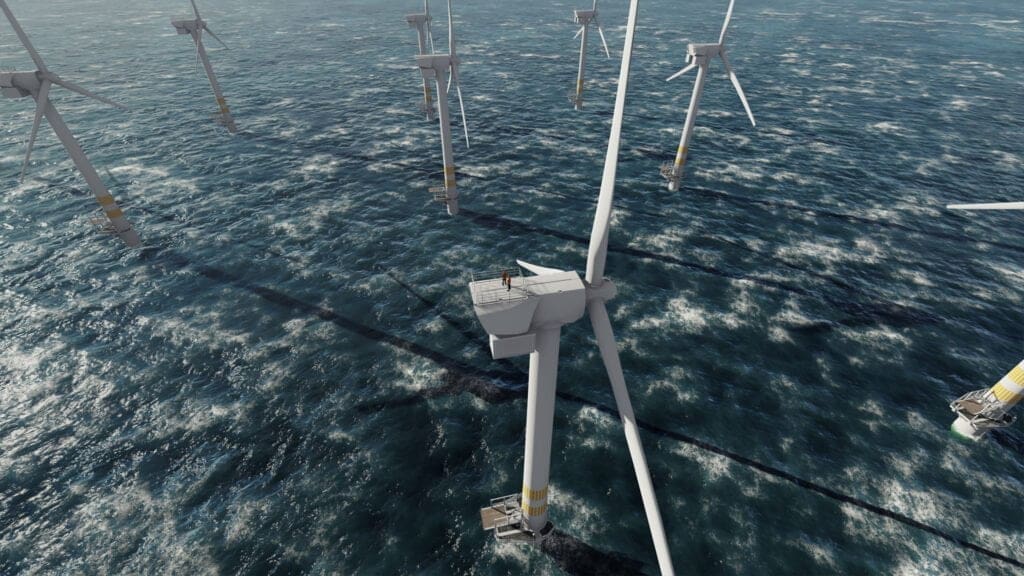

- Wind Turbines
- Gearboxes
- Lubrication Systems
- Pumps and Compressors
features
- Suitable for use on systems up to 500 bar 7500 PSI
- Long-life laser diode, required for 24-hour continuous on-line operations
- Local display offers ISO codes
- 24/7 trend monitoring
- ISO4406 reports
- Can fit into any application, 2-424 cSt
- Easily adapt to filter carts with auto stop when oil is clean
